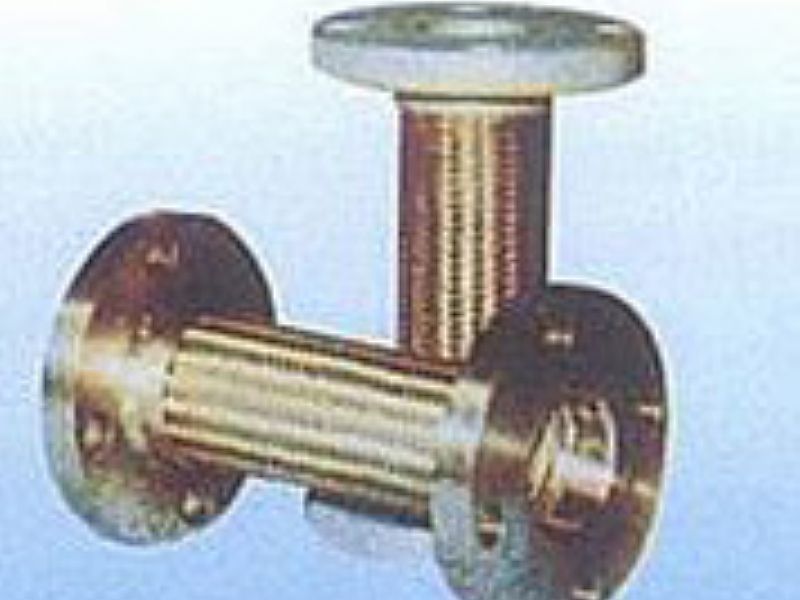

絲扣式金屬軟管
絲扣式金屬軟管
說明：1、安裝長度根據用戶要求制作。2、連接方式有接管連接和法蘭連接2種
|
公稱通徑DN |
工作壓Mpa |
產品型號 |
徑向外形尺寸mm |
|
公稱通徑DN |
工作壓Mpa |
產品型號 |
徑向外型尺寸mm |
|
32 |
0.6 |
0.6BGFJ32×LT |
120 |
200 |
0.6 |
0.6BGFJ200×LT |
315 |
|
|
1.0 |
1.0BGFJ32×LT |
135 |
1.0 |
1.0BGFJ200×LT |
335 |
|||
|
1.6 |
1.6BGFJ32×LT |
1.6 |
1.6BGFJ200×LT |
|||||
|
2.5 |
2.5BGFJ32×LT |
2.5 |
2.5BGFJ200×LT |
|||||
|
40 |
0.6 |
0.6BGFJ40×LT |
130 |
250 |
0.6 |
0.6BGFJ250×LT |
360 |
|
|
1.0 |
1.0BGFJ40×LT |
145 |
1.0 |
1.0BGFJ250×LT |
370 |
|||
|
1.6 |
1.6BGFJ40×LT |
1.6 |
1.6BGFJ250×LT |
390 |
||||
|
2.5 |
2.5BGFJ40×LT |
2.5 |
2.5BGFJ250×LT |
405 |
||||
|
50 |
0.6 |
0.6BGFJ50×LT |
140 |
300 |
0.6 |
0.6BGFJ300×LT |
425 |
|
|
1.0 |
1.0BGFJ50×LT |
160 |
1.0 |
1.0BGFJ300×LT |
435 |
|||
|
1.6 |
1.6BGFJ50×LT |
1.6 |
1.6BGFJ300×LT |
440 |
||||
|
2.5 |
2.5BGFJ50×LT |
2.5 |
2.5BGFJ300×LT |
460 |
||||
|
65 |
0.6 |
0.6BGFJ65×LT |
160 |
350 |
0.6 |
0.6BGFJ350×LT |
485 |
|
|
1.0 |
1.0BGFJ65×LT |
180 |
1.0 |
1.0BGFJ350×LT |
500 |
|||
|
1.6 |
1.6BGFJ65×LT |
1.6 |
1.6BGFJ350×LT |
520 |
||||
|
2.5 |
2.5BGFJ65×LT |
2.5 |
2.5BGFJ350×LT |
550 |
||||
|
80 |
0.6 |
0.6BGFJ80×LT |
185 |
400 |
0.6 |
0.6BGFJ400×LT |
535 |
|
|
1.0 |
1.0BGFJ80×LT |
195 |
1.0 |
1.0BGFJ400×LT |
565 |
|||
|
1.6 |
1.6BGFJ80×LT |
1.6 |
1.6BGFJ400×LT |
585 |
||||
|
2.5 |
2.5BGFJ80×LT |
2.5 |
2.5BGFJ400×LT |
610 |
||||
|
100 |
0.6 |
0.6BGFJ100×LT |
205 |
450 |
0.6 |
0.6BGFJ450×LT |
590 |
|
|
1.0 |
1.0BGFJ100×LT |
215 |
1.0 |
1.0BGFJ450×LT |
615 |
|||
|
1.6 |
1.6BGFJ100×LT |
1.6 |
1.6BGFJ450×LT |
640 |
||||
|
2.5 |
2.5BGFJ100×LT |
230 |
2.5 |
2.5BGFJ450×LT |
660 |
|||
|
125 |
0.6 |
0.6BGFJ125×LT |
235 |
500 |
0.6 |
0.6BGFJ500×LT |
640 |
|
|
1.0 |
1.0BGFJ125×LT |
245 |
1.0 |
1.0BGFJ500×LT |
670 |
|||
|
1.6 |
1.6BGFJ125×LT |
1.6 |
1.6BGFJ500×LT |
705 |
||||
|
2.5 |
2.5BGFJ125×LT |
270 |
2.5 |
2.5BGFJ500×LT |
730 |
|||
|
150 |
0.6 |
0.6BGFJ150×LT |
260 |
600 |
0.6 |
0.6BGFJ600×LT |
755 |
|
|
1.0 |
1.0BGFJ150×LT |
280 |
1.0 |
1.0BGFJ600×LT |
780 |
|||
|
1.6 |
1.6BGFJ150×LT |
1.6 |
1.6BGFJ600×LT |
840 |
||||
|
2.5 |
2.5 BGFJ150×LT |
300 |
2.5 |
2.5BGFJ600×LT |
845 |
